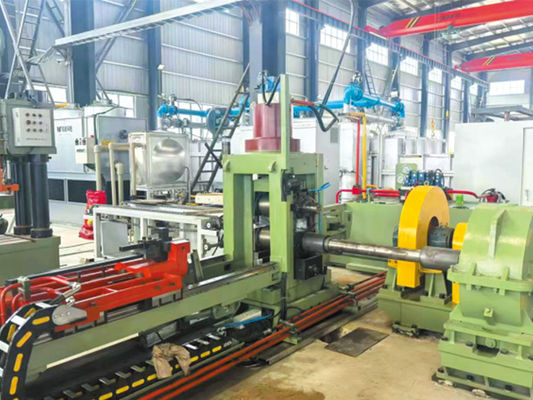

Leaf Spring Long Taper Hot Rolling Parabolic Rolling Machine:
According to the functional requirements of the client and the existing structure and space of the plant, reasonably plan the layout, design, and manufacture equipment such as heating furnaces and rolling mills to complete the tapered rolling of automotive steel leaf springs.
| Max. Raw Material Length | 2200mm |
| Min. Raw Material Length | 800mm |
| Max. Raw Material Width | 120mm |
| Min. Raw Material Width | 40mm |
| Max. Raw Material Thickness | 70mm |
| Min. Raw Material Thickness | 5mm |
| Heating Furnace Chamber Dimension Length*Width*Height Furnace Chamber Height in High Temperature Zone |
6000*1100*450mm |
| Max. Heating Length | 1000mm |
| Max. Furnace Operating Temperature | 1050℃ |
| Max. Combustion Capacity of the Combustion System 5 Burners |
90Nm3/h |
| Furnace Temperature Control Accuracy | ±10℃ |
| Production Efficiency | 35~40s Each Side Standard: Leaf T33*W89mm, Heating L900mm, Temperature 950℃ |
| Feeding Distance Adjustable |
50~150mm |
| Feeding Time Adjustable |
10~60s |
| Rolling Machine Structure | Reducer Drive |
| Flat Rolling Force | 1000KN |
| Vertical Rolling Force | 100KN |
| Roller Diameter | 220mm |
| Vertical Roller Diameter | 80mm |
| Rolling Length Each Side | 1200mm |
| Max. Product Length | 2500mm |
| Min. Product Thickness | 4mm |
| Thickness Tolerance | ±0.15mm |
| Width Tolerance | ±0.5mm |
| Rolling Frequency | 1~10 times |
| Rolling Section | 1~15 |
| Products | Straight, Parabolic, and Both |
| Straightening Machine Nominal Force | 630kN |
| Maximum Straightening Length | 1200mm |
| Four-workstation Press Structure | Gantry Type No Pillars in the Middle |
| Nominal Force Each Workstation | 1000kN/2000/kN/2000kN/1000kN |
