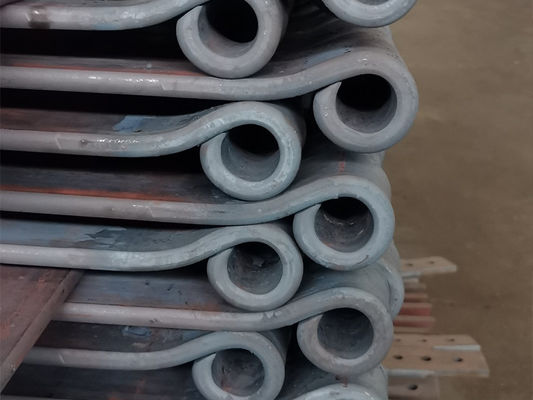

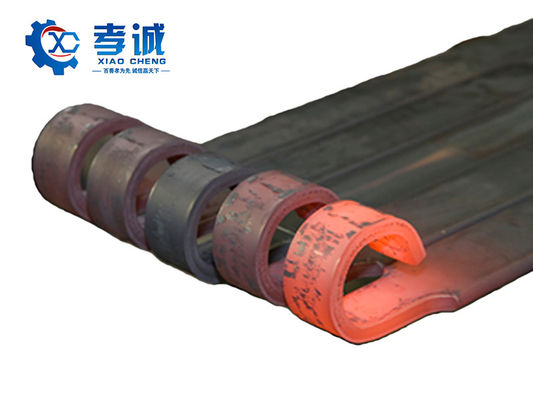

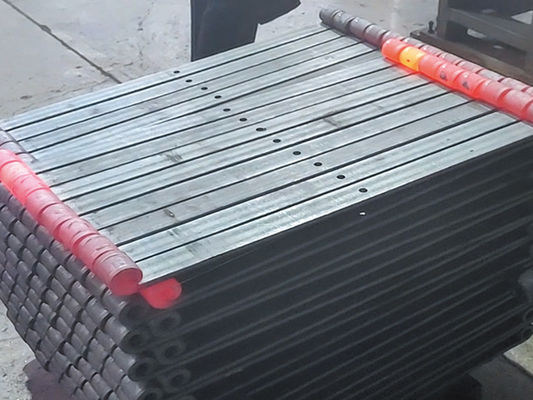

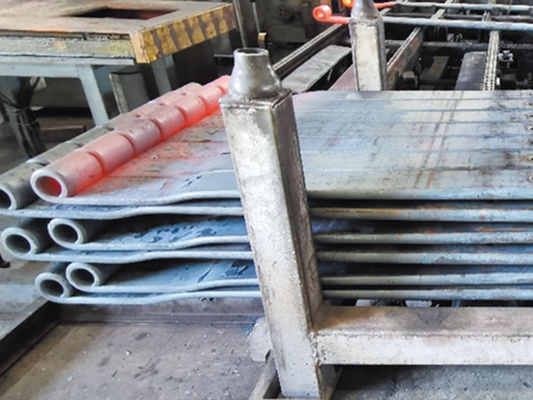

Leaf Spring Automatic Eye Forming:

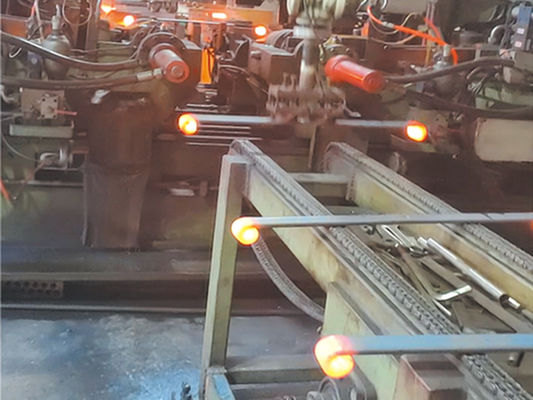

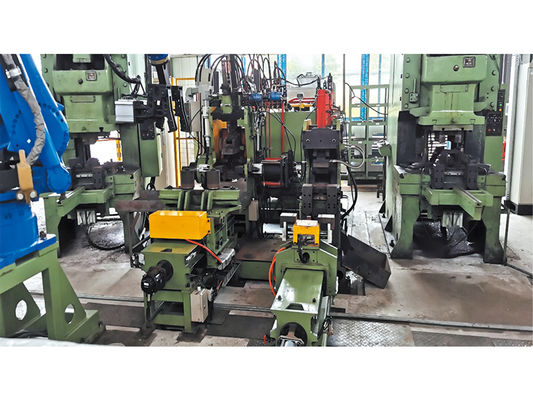

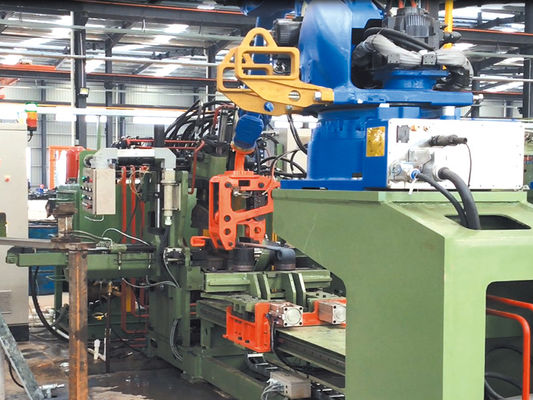

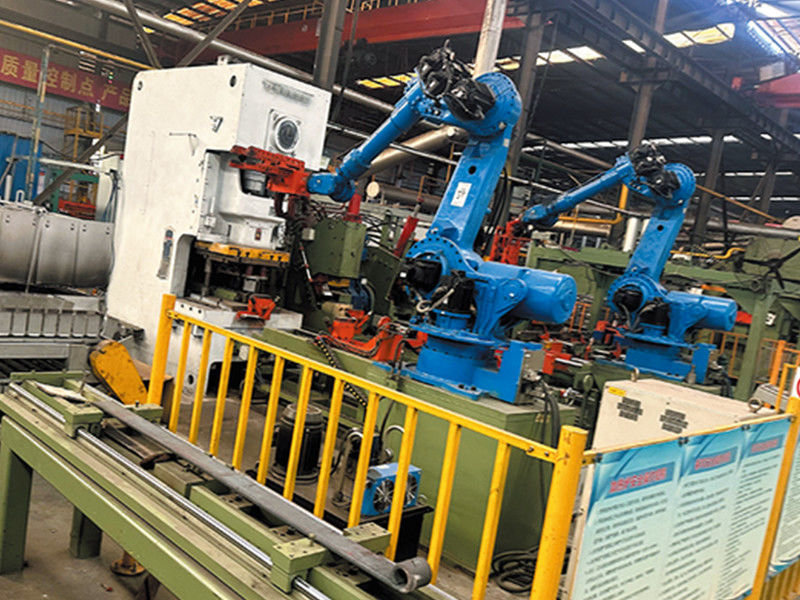

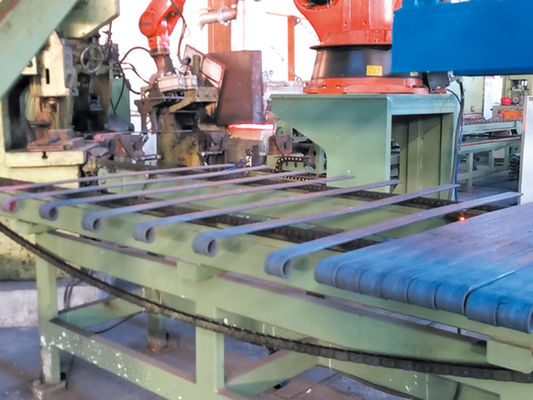

According to the requirements of the demander, design the related equipment of the leaf spring coil ear and the coil ear of automobile, cooperate with the robot, complete the automatic loading and unloading work before and after the leaf spring coil ear and the ear, and realize the full automatic unmanned production function of the coil ear and ear process from the heating.
| Leaf Spring Weight Each | 2~50kg |
| Distance between Two Eyes Centre | 500~2200mm |
| Leaf Spring Thickness | 6~45mm |
| Leaf Spring Width | 50~120mm |
| Leaf Spring Length of Automatic Feeding | 400~2200mm |
| Max. Weight of Carrying Capacity | 400kg |
| Max. Width of Magnetic Struck | 630mm |
| Automatic Feeding Quantity | 1pc |
| Max. Heated Length of End Heating Furnace | 400mm |
| Normal Heating Temperature | >950℃ |
| Productivity | loop 25s/pc Standard: W90*T16*Heated L400mm |
| Max. Temperature | 1050°C |
| Consume 5 Burners |
45Nm³/h Natural Gas |
| Furnace Temperature Control Accuracy | ±10℃ |
| Natural Gas Supply 5000~8000Pa |
>8500KCAL/Nm³ |
| Furnace Dimension Heating Area |
L4500*W450*H600mm |
