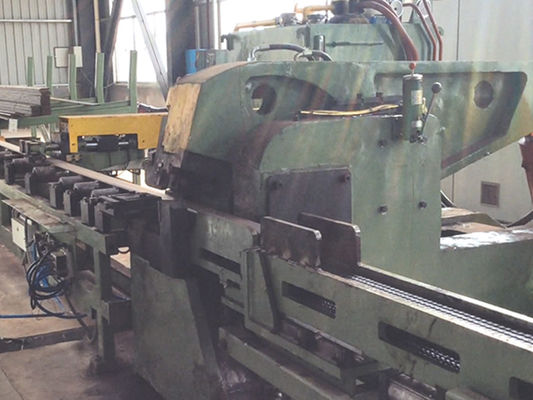

Leaf Spring Raw Materials Cutting Machine:

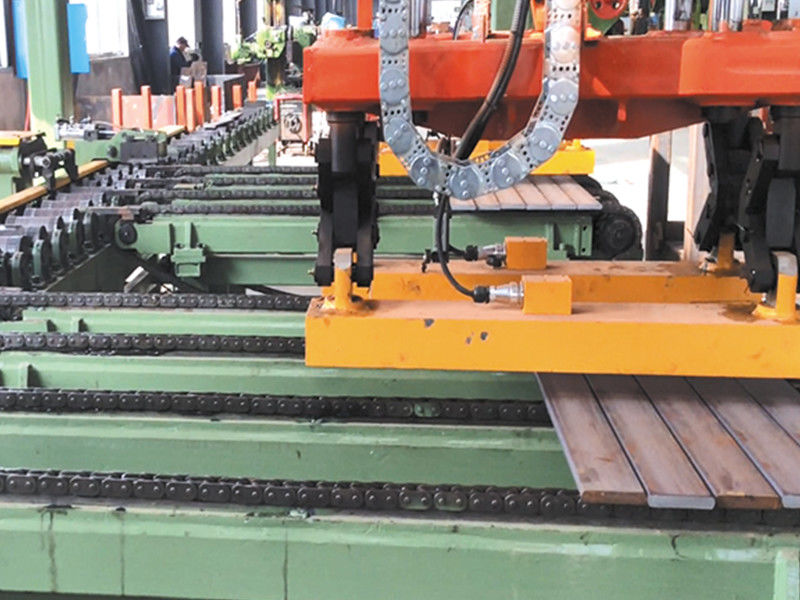

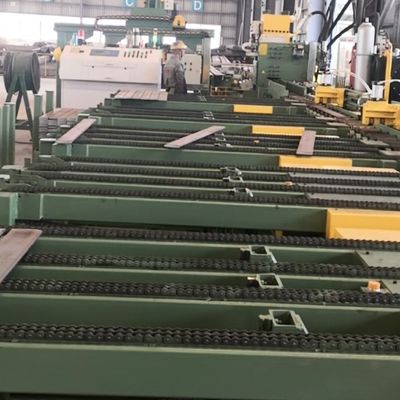

Design and manufacture an automatic leaf spring feeding device based on the requirements of the client’s site. The device will complete the automated production process before and after leaf spring feeding, achieving automated production functionality from material rack loading to unloading and stacking of leaf springs.
| Raw Material Length | ≤7000mm |
| Raw Material Width | 70~150mm |
| Raw Material Thickness | 6~40mm |
| Raw Material Quality | 50CrV, 60Si2Mn, etc |
| Raw Material Hardness | ≤360HB |
| Cutting Specification | 4 Size (Include 1 Short Size) |
| Cutting Nominal Force | 2500kN |
| Cutting Accuracy | ≯±1.5mm |
| Cutting Length | 180~2500mm |
| Cutting Length of Short Size | 260~600mm |
| Stacking Workstation | 3 |
| Stacking Length | 600~2500mm |
| Operator | 1 |
| Production Efficiency | 6~8pcs/min. |
