Air Beam Z Type Spring Automatic Line:

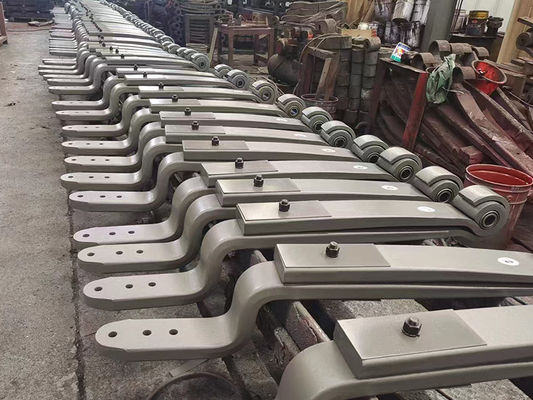

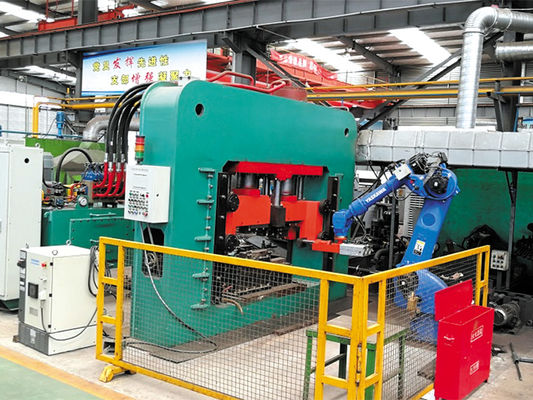

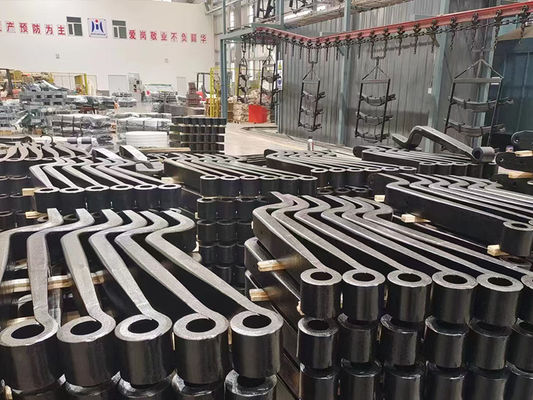

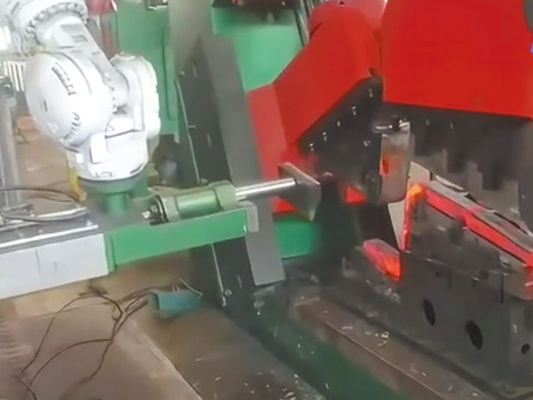

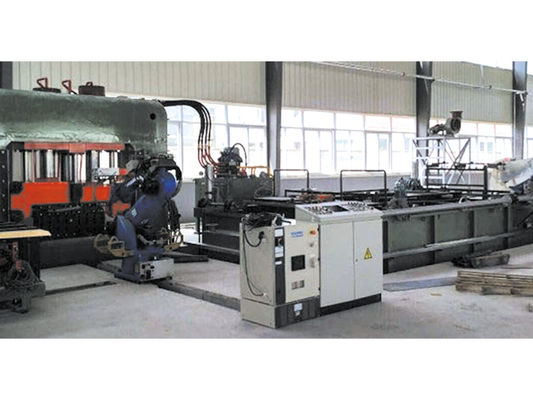

The guide arm forming and heat treatment production line is mainly used for the processes of feeding, heating, straightening, forming, quenching, and tempering of the "Z" shaped guide arms. The entire line is equipped with multiple robots and equipment integration, achieving full automation of the guide arm forming and heat treatment processes. It features high production efficiency and a high degree of automation.
| Leaf Spring Width | 40~120 mm |
| Leaf Spring Thickness | ≤60mm |
| Leaf Spring Straight Length | 600~1800 mm |
| Air Beam Forming Machine Structure | Gantry Frame |
| Nominal Force of Left Forming Cylinder | 2000kN |
| Nominal Force of Right Forming Cylinder | 2000kN |
| Maximum Moulding Height | 450mm |
