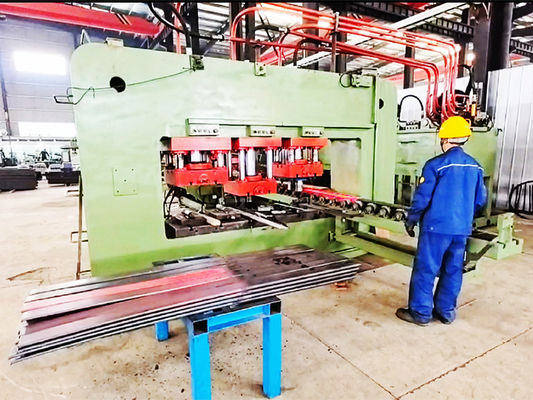

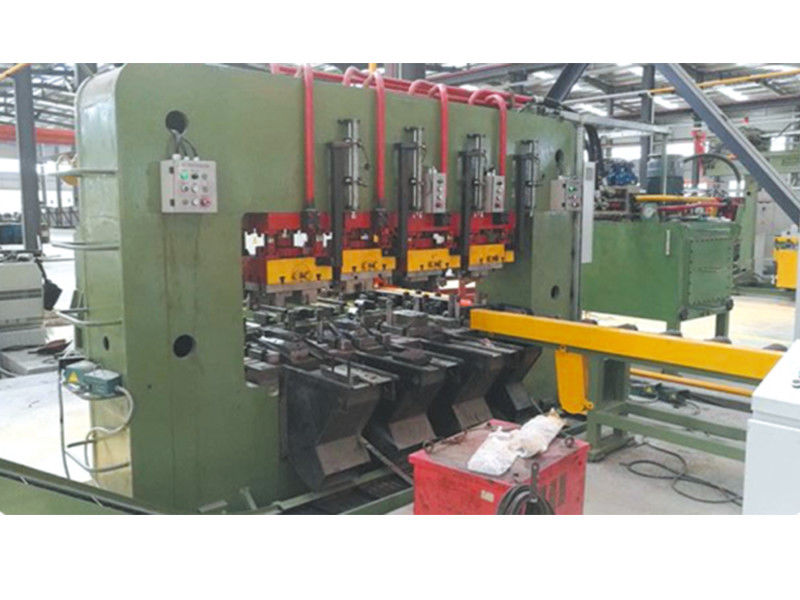

Leaf Spring End Processing Line:

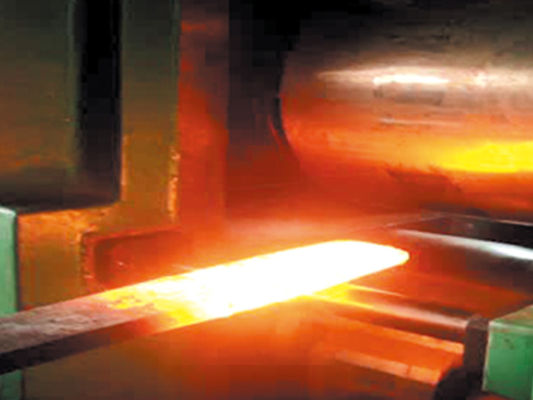

In accordance with the requirements of the customer, the design and manufacturing are carried out for the end-section variable cross-section rolling and forming of automotive steel leaf springs. During operation, the heated billets are manually or automatically placed between the upper and lower rolls of the rolling mill, with the front end of the billet positioned for processing.
| Leaf Spring Unit Weight | 10~50KG(1PC Each Time) |
| Leaf Spring Length | 300~2200mm(Manual) |
| Leaf Spring Width | 75~120mm |
| Leaf Spring Thickness | 12~40mm |
| Feeding Raw Material Method | Manual or Automatic Feeding on the Front |
| Leaf Spring Heating Temperature | 900~950℃ |
| Max. Rolling Force | 2000kN |
| Rolling Slope | 0~25% (Adjustable, ≥12.5% to replace the high slope rolling block) |
| Rolling Length | 50~200mm |
| Power | 30KW |
