Performance Testing:

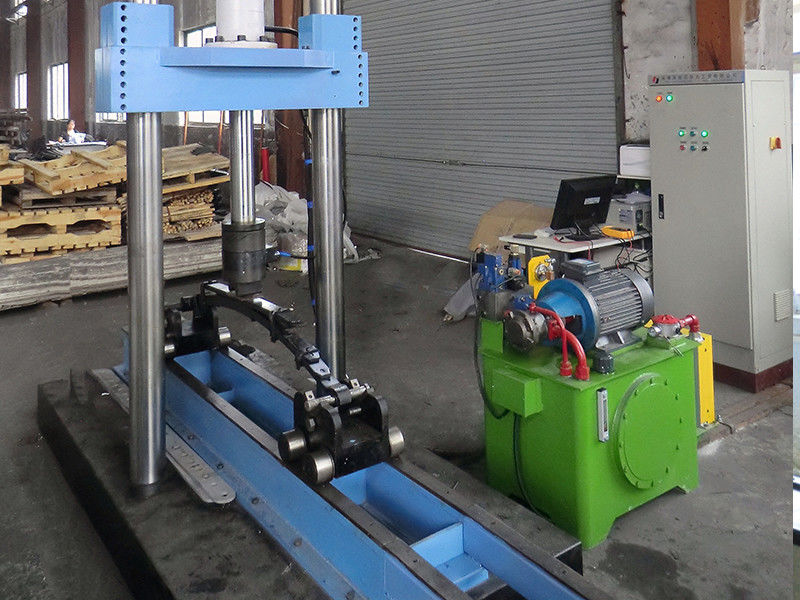

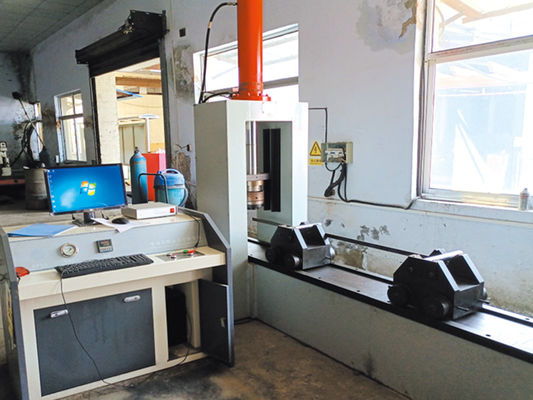

Design and manufacture the relevant control hardware and software according to the requirements of the client, enabling the detection of free camber height, static load camber height, four-point stiffness, two-point stiffness, loading curve, and unloading curve during a single loading and unloading process of the leaf spring assembly.
| Max. Preload Load | 300kN |
| Max. Preload Stroke | 650mm |
| Max. Flat Length | 2200mm |
| Max. Width | 140mm |
| Max. Arc Height | 250mm |
| Max. Assembly Thickness | 350mm |
| Arc Height+Assembly Thickness | ≤450mm |
| Displacement Sensor Accuracy | 0.02mm |
| Displacement Detection Accuracy | 0.1mm |
| Force Sensor Accuracy | 0.05%FS |
| Force Load Detection Accuracy | 0.50% |
| Free Arc Height Detection Repeatability | 0.3mm |
| Static Height Detection Repeatability | 0.5mm |
| Stiffness Test Repeatability | ≤1% |
| Motor Power | 11KW |
