Fatigue Testing:

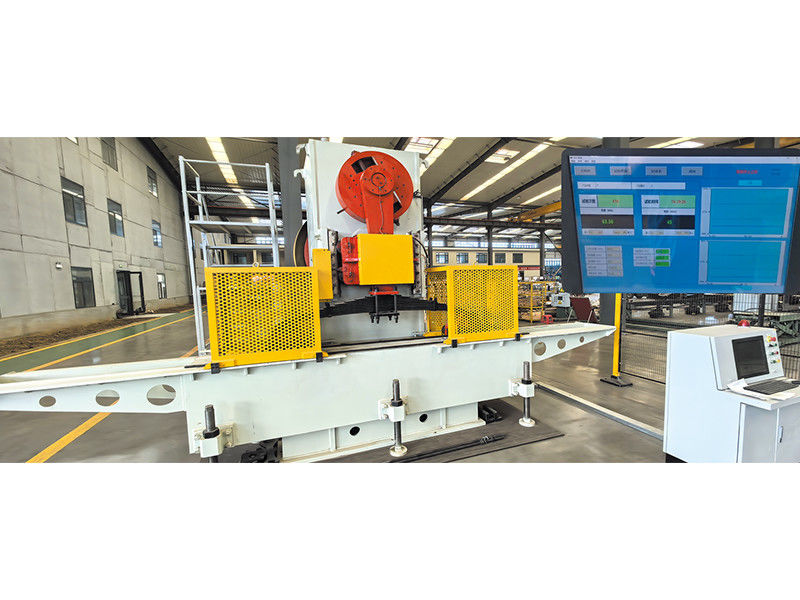

Design and manufacture a fatigue testing machine according to the requirements of the purchaser, to be used for conducting fatigue tests on automotive leaf springs in the laboratory.
| Leaf Spring Width | 40~120mm |
| Leaf Spring Assembly Thickness | 50~450mm |
| The Distance between Two Eyes Centre | 750~2100mm |
| Max. Outer Diameter of Wrap Eye | ≤Ф180mm |
| Max. Arc Height Include Assembly Thickness |
≤550mm |
| Max. Load | 300kN |
| Max. Amplitude | ±100mm |
| Frequency Range | 1~2Hz |
| Max. Assembly Height | 500mm |
| Max. Distance of Leaf Spring | 100mm |
| Max. Preload of Leaf Spring | 100kN |
| Motor Power | 55KW Frequency Control |
